The opening and closing part of the grooved gate valve is the gate, and the movement direction of the gate is perpendicular to the fluid direction. The gate valve can only be fully opened and closed, and cannot be adjusted and throttled. The sealing of grooved soft seal gate valve has two kinds: self sealing and forced sealing. The sealing surface can only be sealed with medium pressure, that is, the sealing surface of the ram can be pressed to the valve seat on the other side with medium pressure to ensure the tightness of the sealing surface, which is self sealing. Forced sealing means that when the gate valve is closed, the gate shall be forced to the valve seat by external force to ensure the tightness of the sealing surface.

溝槽閘閥與溝槽蝶閥的區別

Difference between grooved gate valve and grooved butterfly valve

1.溝槽閘閥

1. Grooved gate valve

槽形閘閥廣泛應用于自來水、污水、海水、水處理、環保、建筑、消防、石油、化工、電力、食品、醫藥、輕紡、造船、能源等行業的管線上作為調節和截流裝置。溝槽閘閥具有開關輕便、密封可靠、彈性記憶好、使用壽命長等顯著優點。槽形閘閥利用彈性閘板產生的微彈性變形的補償作用，達到良好的密封效果。

Grooved gate valves are widely used in pipelines of tap water, sewage, seawater, water treatment, environmental protection, construction, fire protection, petroleum, chemical industry, electric power, food, medicine, light textile, shipbuilding, energy and other industries as regulating and intercepting devices. Grooved gate valve has the advantages of light switch, reliable sealing, good elastic memory, long service life and so on. Groove gate valve uses the compensation function of micro elastic deformation produced by elastic gate to achieve good sealing effect.

槽形閘閥閥板采用優異的橡膠將內外橡膠包裹在整體上。國外的橡膠硫化技術，使硫化閥板保證準確的幾何尺寸，橡膠和球墨鑄鐵閥板牢固，不易脫落，具有良好的彈性記憶。溝槽閘閥是引進先進的生產技術，克服了溝槽閘閥橡膠老化、銹蝕閥門和柔性門彈性變形等問題。

The grooved gate valve plate adopts excellent rubber to wrap the inner and outer rubber on the whole. Foreign rubber vulcanization technology ensures the accurate geometric size of vulcanized valve plate. Rubber and nodular cast iron valve plates are firm, not easy to fall off and have good elastic memory. Grooved gate valve introduces advanced production technology, which overcomes the problems of rubber aging, corrosion and elastic deformation of flexible gate valve.

溝槽式閘閥的特點：(1)啟閉省力。(2) 介質的流動方向不受限制，不會干擾流動和降低壓力。(3) 流體阻力小，密封面受介質沖刷和侵蝕少。(4) 本實用新型形狀簡單，結構長度短，可制造性好，適用范圍廣。

Features of grooved gate valve: (1) labor saving opening and closing. (2) The flow direction of the medium is unrestricted, which will not interfere with the flow and reduce the pressure. (3) The fluid resistance is small, and the sealing surface is less scoured and eroded by the medium. (4) The utility model has the advantages of simple shape, short structural length, good manufacturability and wide application range.

2.溝槽式蝶閥

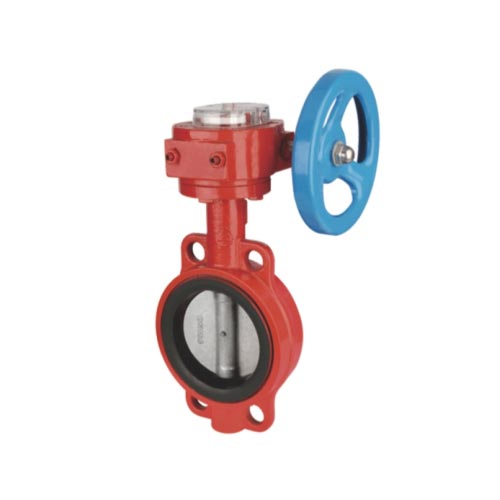

2. Grooved butterfly valve

具有安裝快速、簡單、可靠的特點，不受安裝地點的限制，便于管道和閥門的維護，具有隔振、隔音的特點。在一定角度范圍內，可克服管道不同軸連接產生的誤差，解決溫差引起的熱膨脹和冷縮，密封性能可靠，不受介質注入的限制(雙向密封)，溢流面積大，流阻系數小，流量大。廣泛應用于流體輸送管道，在排水、消防、空調、燃?xì)?、石油、化工、水處理、市政、造船等管道工程中用作控制流體。

It has the characteristics of fast, simple and reliable installation, is not limited by the installation location, is convenient for the maintenance of pipelines and valves, and has the characteristics of vibration isolation and sound insulation. Within a certain angle range, it can overcome the errors caused by the connection of different shafts of the pipeline, solve the thermal expansion and cold contraction caused by temperature difference, have reliable sealing performance, are not limited by medium injection (two-way sealing), have large overflow area, small flow resistance coefficient and large flow. It is widely used in fluid transmission pipeline and used as control fluid in pipeline engineering such as drainage, fire protection, air conditioning, gas, petroleum, chemical industry, water treatment, municipal administration, shipbuilding and so on.

溝槽式蝶閥的特點：(1)流通面積大，流阻系數小，流量大。(2) 蝶板采用整體橡膠制成，經久耐用。(3) 本實用新型結構緊湊，體積小，重量輕，操作靈活，維修方便。

Features of grooved butterfly valve: (1) large flow area, small flow resistance coefficient and large flow. (2) The butterfly plate is made of integral rubber and is durable. (3) The utility model has the advantages of compact structure, small volume, light weight, flexible operation and convenient maintenance.
